Control pannel

TLS Defence Control Panel Design & Build

Using advanced in-house AutoCAD software, the TLS Defence engineering team delivers complete electrical control panel design packages tailored for defence and industrial applications. Our detailed documentation includes electrical schematics, internal and external layouts, terminal arrangements, cable schedules, and comprehensive parts lists to ensure seamless manufacturing, installation, and maintenance.

We are also able to manufacture control panels directly from client-supplied designs and specifications, providing a flexible service to support project requirements and existing engineering standards.

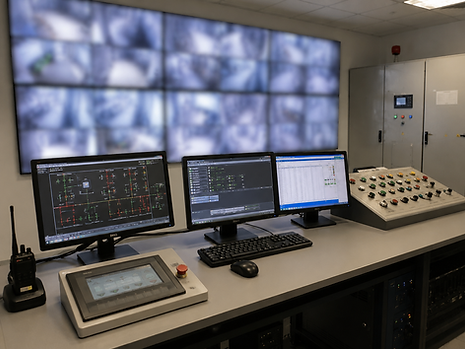

ChatGPT Image May 13, 2026, 10_25_58 AM.png

Control Panel Manufacturing Capabilities

As specialist control panel manufacturers, TLS Defence provides:

  • Control Panel Suites

  • Motor Control Centres (MCCs)

  • Combined Motor / PLC / Instrumentation / Pneumatic Panels

  • LV Distribution & Monitoring Systems

  • Control Desks & Operator Consoles

  • Small Control Panels & Local Control Stations

  • Operator & HMI Stations

Operator & HMI Stations

TLS Defence designs and manufactures operator stations and HMI systems as part of complete automation and control solutions. Our engineering team combines PLC systems with intuitive HMI interfaces to provide operators and maintenance teams with clear, reliable control and monitoring tools for plant, process, and machine applications.

HMI configurations are developed with usability and operational efficiency in mind, delivering concise production data, alarm management, and system diagnostics through easy-to-navigate control screens.

Full on-site training is provided to ensure operational staff are fully familiar with each HMI system and operator interface.

Our software and automation capabilities include:

PLC Platforms

  • Allen Bradley

  • Siemens

  • Omron

  • Mitsubishi

  • Toshiba

SCADA & HMI Platforms

  • WinCC

  • FactoryTalk

  • RSView

  • Wonderware

  • iFIX

  • WinCC Flexible

Motor Control Centres & LV Distribution Boards

TLS Defence provides a wide range of Motor Control Centres designed for both conventional and intelligent motor starter applications. Our MCC systems are engineered, manufactured, and rigorously tested to comply with BS EN 61439 standards, ensuring reliability, safety, and long-term performance.

We manufacture LV switchboards in a variety of configurations and form separations in accordance with BS EN 61439-2 requirements.

Our systems include:

  • Custom-built modular and fully welded switchboards

  • LV busbar system design, manufacture, and testing

  • Busbar certification up to 2500A at 50kA for 3 seconds

  • Distribution boards to recognised Form and Type standards

  • Usage monitoring and metering systems

  • Power factor correction systems

TLS Defence combines engineering expertise, quality manufacturing, and industry compliance to deliver dependable control panel solutions for demanding operational environments.
